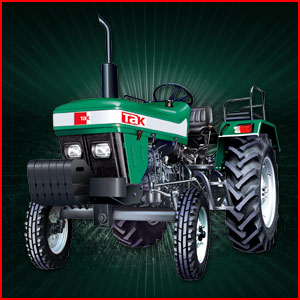

| TRACTOR TYPE |
TAK 50 |
| DRIVE |
2WD |
| ENGINE |
|
| MODEL |
4095FL |
| HP CATEGORY |
50 |
| HP AT RATED ERPM(HP/KW) |
49/35.57 |
| TYPE |
Direct Injection Water Cooled Diesel Engine |
| NO. OF CYLINDER |
4 |
| ASPIRATION |
Natural |
| BORE/STROKE (MM) |
95/110 |
| DISPLACEMENT (CC) |
3120 |
| COMPRESSION RATIO |
18.4:1 |
| FIRING ORDER |
1-3-4-2 |
| RATED ENGINE RPM |
2200 |
| FUEL INJECTION SYSTEM |
Inline Plunger Type |
| FUEL INJECTION PRESSURE (KG/CM2) |
250 |
| MAX TORQUE(NM) |
180 |
| SFC AT RATED SPEED (GM/PS.HR) |
181 |
| SILENCER |
Vertical Elliptical Updraft |
| AIR CLEANER |
Dry Air Cleaner With Warming Switch |
| CLUTCH |
|
| TYPE |
DC |
| PLATE SIZE (MM) |
280MM |
| TYPE OF CLUTCH PLATES |
Ceramic |
| TRANSMISSION |
|
| TYPE |
Constant Mesh |
| DIFF.LOCK |
Foot Operated |
| GEAR SPEED (KM/HR) |
|
| GEAR SPEED (KM/HR) |
With Rear Tyre 13.6x28 / 14.9x28 |
| L1 |
2.74/2.93 |
| L2 |
3.77/3.89 |
| L3 |
5.96/6.15 |
| L4 |
8.08/8.34 |
| H1 |
11/11.74 |
| H2 |
15.18/15.6 |
| H3 |
23.88/24.64 |
| H4 |
32.39/33.42 |
| R-L |
3.52/3.63 |
| R-H |
14.09/14.54 |
| PTO |
|
| TYPE |
Single Speed Live PTO |
| RPM |
540 |
| NO. OF SPLINES |
6 |
| MAX PTO POWER (HP/KW) |
40.37/31.6 |
| BRAKES |
|
| MAIN BRAKE |
Dry Disc Brake/Oil Immersed Brakes |
| PARKING BRAKE |
Independent Type |
| STEERING |
|
| STEERING TYPE |
Mechanical Steering |
| HYDRAULIC |
|
| A. POSITION CONTROL |
To Hold Lower Links at Desired Heights |
| B. AUTOMATIC DRAFT CONTROL |
To Maintains Uniform Draft |
| C. MIX CONTROL |
For Simultaneous Use Of Position And Draft Controls |
|
For Optimum Field Output |
| NO OF SPOOL VALVES |
1SA+1DA/2DA |
| FLOW IN L/MIN @ RATED ERPM (CC) |
22.7(12)(M/S)/15.5(8)+34.7(18)P/S |
| LINKAGE (DRAW BAR SIDE) |
Cat 2 |
| LIFTING CAPACITY (Kg) |
1600 |
| ELECTRICAL INSTRUMENT |
|
| BATTERY |
12V, 88AH |
| STARTER MOTOR |
12V, 2.7 KW Make:Mico, 12V, 2.5KW Make (Lucase) |
| ALTERNATOR |
12V, 36A |
| HORN |
12V, 3A |
| 7-TERMINAL ELECTRICAL OUTLET SOCKET |
Ten Terminals, Rated From 1A to 13A |
| FUSE BOX |
Ten Terminals, Rated From 1A to 13A |
| OTHERS |
Hour Meter, Oil Gauge, Temperature Gauge, RPM Meter, Indicator Switch For High Beam, Neutral Safety Switch |
| TYRES |
|
| FRONT TYRE |
6.00x16 |
| REAR TYRE |
13.6x28 (M/S), 149X28 (P/S) |
| TYRE PRESSURE (FRONT) ROAD/FIELD (kpa) |
250/250 |
| TYRE PRESSURE (REAR) ROAD/FIELD (kpa) |
150/110 |
| DRIVER SEAT |
|
| TYPE |
Adjustable With Emblem |
| DIMENSIONS & WEIGHTS |
|
| WHEEL BASE (mm) |
2068 |
| OVERALL LENGTH (mm) |
3906 |
| OVERALL WIDTH (mm) |
1800 |
| TURNING RADIUS |
|
| WITH BASE (m) |
3.09 |
| WITHOUT BRAKES (m) |
3.70 |
| OVERALL HEIGHT (mm) WITH STD. TYRES |
|
| STEERING WHEEL (mm) |
1765 |
| EXHAUST PIPE (mm) |
2300 |
| MINIMUM GROUND CLEARANCE (mm) WITH BALLAST |
410 |
| NORMAL FRONT WHEEL TRACK (mm) WITH BALLAST |
1320 |
| NORMAL REAR WHEEL TRACK (mm) |
1430 |
| DIA. OF STEERING WHEEL (mm) |
434 |
| MAXIMUM WEIGHT OF TRACTOR (kg) WITH BALLAST |
2940 |
| MAXIMUM WEIGHT OF TRACTOR (kg) WITH BALLAST |
2240 |
| CAPACITIES (IN LITRES) & TYPE OF OIL |
|
| FUEL TANK/TYPE |
65 Lts. / HSD |
| AIR CLEANER/GRADE |
NA |
| ENGINE OIL FOR SERVICING/GRADE |
11.25/SAE-40 |
| COOLING SYSTEM/TYPE |
Forced Water Circulation |
| HYDRAULIC SYSTEM + TRASMISSION OIL/GRADE |
60.5/E.P.80.GL-4 |
| STEERING HOUSING / GRADE |
0.6 / E.P.80 GL-4 |
| Specifications are subject to change without notice |
